IR-CZ

Infrared Thermometers

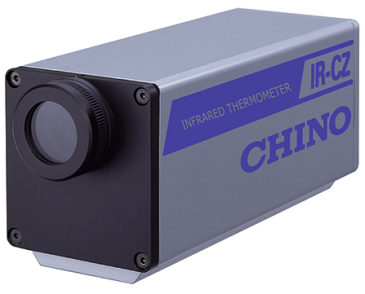

IR-CZ Series Infrared Radiation Thermometer

The IR-CA series is a non-contact and high-speed (2-15ms) compact radiation thermometer covering medium and high temperature range by using the detecting element of InGaAs or Si. The thermometer with converting function has a digital display of temperature, parameter setting keys, and a direct viewfinder. The thermometer can be placed at any place due to a large distance factor.

IR-CZQH

Stability and durability is improved to continuous ultra-high temperature measurement.
Achieved high accuracy by calibration of metl/carbon eutectic point traced of which Japan's first high temperature fixed point.

IR-CZQW

Single color and 2-Color measurement of each 3 wavelengths are switchable.
Response time is improved to correspond measuring value drastic change.

Models
IR-CZQH7	High Temperature Type
IR-CZQW2	Mid Temperature Type

Model	IR-CZQH7	IR-CZQW2
Element	Si/InGaAs	Si/InGaAs/InGaAs
Spectral response	0.9/1.55µm	0.9/1.35/1.55µm
Measuring range	900 to 3500°C	400 to 2000°C
Accuracy rating *1	Lower than 1000°C … ±5°C 1000°C to lower than 1500°C…±0.5% of measured value 1500°C to lower than 2500°C…±0.6% of measured value 2500°C or higher … ±1% of measured value	Lower than 1000°C … ±5°C 1000°C to lower than 1500°C…±0.5% of measured value 1500°C to lower than 2500°C…±0.6% of measured value
Response time	2 to 15ms
Optics	Moveable focusing lens type
Effective diameter of lens	Field diaphragm Φ10mm,200	200
Power consumption	Maximum 2.4VA
